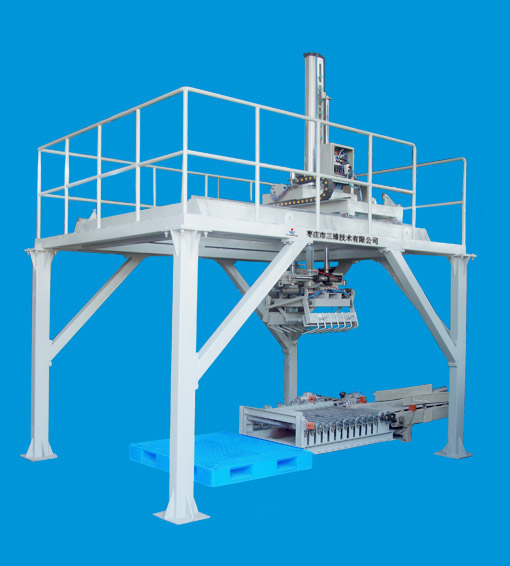

This machine is mainly used for the automatic stacking of package bags and boxes with small production.

Main parts:flattening device, bag turning and posture adjusting device, sorting scale, grabbing roller, pallet supplier machine, loaded pallet conveyor, elevator mechanism, servo control cabinet etc.

Features:

♥A touch screen enables a man-machine dialog. Speed of production and source of error are visible on the screen,

♥with the control of PLC, you can design how to arrange the stack on the screen.

♥wide range of application. It can stack all kinds of package bags.

♥compact structure, with small occupation

♥simple structure, easy to maintain and repair

♥easy to operate, safe and efficient

♥low energy consumption, saving the cost

♥flexible arrangement

♥pallets of different types and sizes can be used

Technical parameters:

Model: SW-ASL

Stacking speed: 200-400 bags/h

Pallet size: L1000-1200*W1000-1200mm

Height: 200-1600mm

Height of stacking platform: 600¡À50mm

Current source: 220/380V 50HZ

Power: 6000W (including the stacking platform)

Size: L4800*W2500*H3700mm
